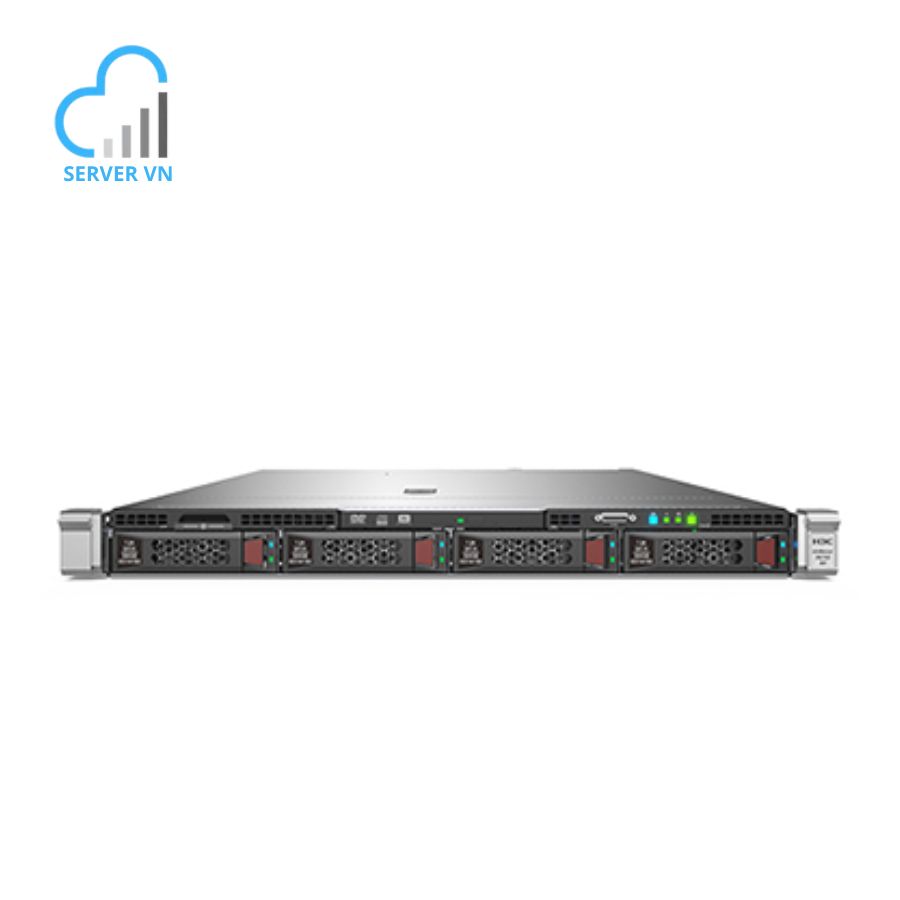

H3C UniServer R4700 G3 Server
Handle high-density workloads with excellent performance and extraordinary efficiency
The R4700 G3 provides enhanced performance in high-density scenarios and delivers extraordinary computing performance with Intel processors in a 1U space. Its industryleading system design brings ease of use, enhanced security, and high availability.
As an advanced high-performance dual-processor 1U rack server, the R4700 G3 uses the most recent Intel’ Cascade Lake processor or Cascade Lake Refresh (CLX R) processor series CPU (4000 series ,5000 series ,6000 seris ,8000 series) and six-channel 2933MHz DDR4
DIMMs, increasing server performance by 50%. With GPU acceleration and NVMe SSD, the R4700 G3 provides excellent computing performance and I/O acceleration. Its support of
power supplies with 96% efficiency and an operating temperature as high as 45°C (113°F) greatly improves data center efficiency and brings high return on investment.
The R4700 G3 is ideal for high-density scenarios:
– High-density data centers – For example, data centers of medium- to large-sized enterprises and service providers.
– Dynamic load balancing – For example, database, virtualization, private cloud, and public cloud.
– Compute-intensive applications – For example, Big Data, smart commerce, and geological prospecting and analysis.
– Low-latency and online trading applications – For example, querying and trading systems of the financial industry.
The R4700 G3 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
Thông số kỹ thuật máy chủ H3C UniServer R4700 G3 – 8×2.5″
Computing | 2 × Intel® Xeon® Scalable processors
(Up to 28 cores and maximum 205 W power consumption) |
Memory | Up to 24 × DDR4 DIMMs, support RDIMM and LRDIMM, 2933 MT/s, max 3TB
Up to 12 Intel ® Optane™ DC Persistent Memory Module. |
Storage controller | Embedded RAID controller (SATA RAID 0, 1, 5, and 10)
Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional) Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, and 1E) (Optional) Standard PCIe HBA cards and storage controllers (Optional) |
FBWC | 4 GB DDR4-2133MHz |
Storage | Front 4LFF + rear 2SFF, supports SAS/SATA HDD/SSD and up to 8 front NVMe drives
Front 10SFF + rear 2SFF, supports SAS/SATA HDD/SSD and up to 8 front NVMe drives |
Network | 1 × onboard 1 Gbps management network port
1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports (Optional) 1 × PCIe Ethernet adapters (Optional) |
PCIe slots | 5 × PCIe 3.0 slots (two standard slots, one for Mezzanine storage controller, and one for Ethernet adapter) |
Ports | Front VGA connector (Optional)
Rear VGA connector and serial port 4 × USB 3.0 connectors (two at the rear and two in the server) 2 × MicroSD slots (Optional) |
GPU | 2 × single-slot wide GPU modules |
Optical drive | External optical drive
Only the 4LFF and 8SFF drive models support built-in optical drives |
Management | HDM (with dedicated management port) and H3C FIST |
Power supply and ventilation | Platinum 550W/800W/850W or 800W –48V DC power supplies (1+1 redundancy)
Hot swappable fans (supports redundancy) |
Standards | CE,UL , FCC,VCCI,EAC, etc. |
Operating temperature | 5°C to 45°C (41°F to 113°F)
The maximum operating temperature varies by server configuration. For more information, see the technical |
Dimensions(HxWxD) | Without a security bezel: 42.88 × 434.59 × 768.3 mm (1.69 × 17.11 × 30.25 in) With a security bezel: 42.88 × 434.59 × 780.02 mm (1.69 × 17.11 × 30.71 in) |
