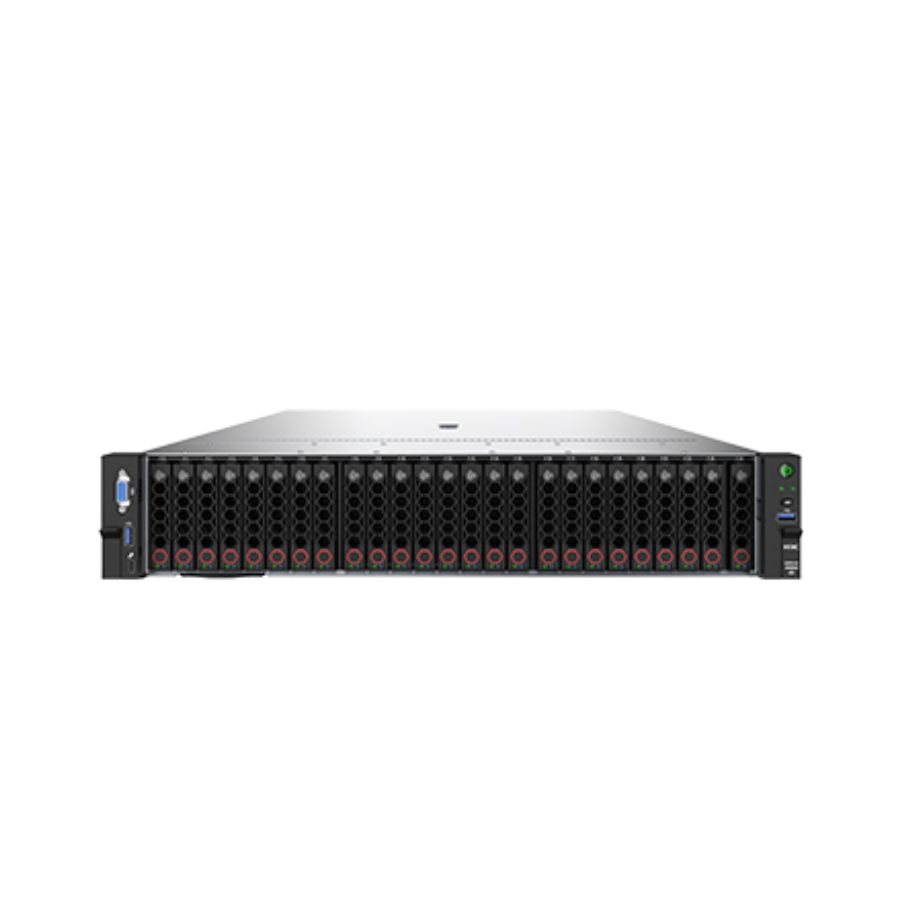

Máy chủ H3C UniServer R4950 G5

Name: Máy chủ H3C UniServer R4950 G5
SKU: SVN-H3C-R4950-G5
Availability: InStock

Liên hệ

Giá trên chưa bao gồm 10% thuế VAT

H3C UniServer R4950 G5 Server

CPU: 2 × AMD EYPC TM series
RAM: 32 x DDR4 DIMM slots, Supports RDIMM/LRDIMM
HDD/SSD: 12 × 3.5″ | 24 x 2.5″ HDD/SSD(SAS/SATA)
PSU: 2 x 800W
Bảo hành: 12 tháng

Mã: SVN-H3C-R4950-G5 Danh mục: Máy Chủ, Máy Chủ H3C

H3C UniServer R4950 G5 Server

The Best virtualized resource platform

– Support up to 128 cores and 4 TB memory
– Optimized for Virtualization Platform

Hi-performance and flexible computing

– AMD EPYC Processor
– Up to 10 x PCIe 4.0/3.0 standard slots
– 2 x OCP3.0 slots

Full-lifecycle Use Experience

– Virtualized Unified Management
– Simplified Deployment and Maintenance

Thông số kỹ thuật máy chủ H3C UniServer R4950 G5

CPU	2 x Rome/Milan AMD EYPC TM series (each processor up to 64 cores and maximum 280W power consumption)
Memory	32 x DDR4 DIMM slots , maximum 4.0 TB Up to 3200 MT/s data transfer rate，support RDIMM or LRDIMM
Storage controller	Standard PCIe HBA or RAID controller (SATA RAID 0, 1, 5, and 10), depending on model
FBWC	4 GB DDR4 cache, depending on model, support supercapacitor protection
Storage	Up to front 12LFF bays, Rear 4LFF+2SFF bays* Up to front 25SFF bays, Rear 2LFF+4SFF bays* Front SAS/SATA HDD/SSD/NVMe Drives, maximum 24 x U.2 NVMe Drives PCIe or SATA 2280/22110 M.2 SSDs, 2 x SD card kit , depending on model
Network	2 x OCP 3.0 slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25GE/IB Ethernet adapter
PCIe slots	10 x PCIe 4.0/3.0 standard slots
Ports	VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (front USB3.0+USB2.0, rear 2 x USB3.0, internal 2 x USB3.0) 1 dedicated management Type-C port 1 x onboard 1 Gbps management network port
GPU	6 x single-slot wide or 2 x double-slot wide GPU modules
Optical drive	External optical disk drive , optional
Management	HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model
Security	Chassis Intrusion Detection TCM/TPM2.0
Power supply	2 x Platinum 550W/800W/850W/1200/1600W/2000W (1+1 redundancy) ,depending on model Hot swappable redundant fans
Standards	CE，CCC, etc.
Operating temperature	5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.
Dimensions (H × W × D)	2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 775.5 mm (3.44 x 17.54 x 30.53 in)
