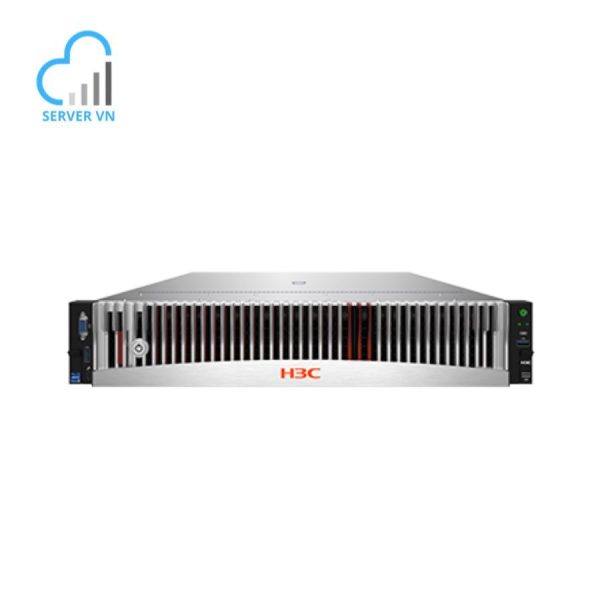

H3C UniServer R4900 G6 Ultra Server

Liên hệ

Giá trên chưa bao gồm 10% thuế VAT

CPU: 2 × 4th Generation Intel®Xeon® processors
RAM: 32 × DDR5 DIMM slots, 5600 MT/s, Supports RDIMM/LRDIMM
HDD/SSD: 12 × 3.5″ | 24 × 2.5″ HDD/SSD(SAS/SATA/NVMe)
PSU: 2 × 1300W
Bảo hành: 12 tháng

Mã: SVN-H3C-R4900U-G6 Danh mục: Máy Chủ, Máy Chủ H3C

Mô tả
Đánh giá (0)

H3C UniServer R4900 G6 Ultra Server

H3C UniServer R4900 G6 Ultra server is the latest generation H3C X86 2U 2-Socket Rack Server.

R4900 G6 Ultra is featured by Intel’s new-generation Eagle Stream platform.

R4900 G6 Ultra is suitable for most general computing scenarios, including cloud computing, virtualization, distributed storage, and enterprise resource planning.

For typical applications, such as the Internet, Carriers, enterprises, and governments, R4900 G6 Ultra can provide balanced computing performance, storage capacity, power saving, scalability, and reliability. For the management part, it becomes much easier for management and deployment.

H3C UniServer R4900 G6 Ultra incorporates the latest Intel® Xeon® Scalable family processor with HBM technology and 8-channel 5600MT/s DDR5 memory technology, bringing up to 4TB memory expansion and a 50% bandwidth increase. The new I/O structure is compatible with PCIe 5.0 standard with a 100% increased data bandwidth compared with the previous generation.

It achieves excellent scalability through local storage support of up to 10 standard PCIe slots and up to 29 drive slots. 96% power supply energy efficiency, and an operating temperature design of 5°C – 45°C, provide users with higher energy efficiency returns.

The H3C UniServer R4900 G6 Ultra server can also be used as the computing infrastructure for greener data centers. It supports board-type liquid cooling modules, which can greatly improve heat dissipation. In addition, it also has the optimization effect of cooling and saving energy for the CPU and memory, dramatically reducing the power consumption of the whole machine and equipment noise, and improving the working environment of the data center.

R4900 G6 Ultra is optimized for scenarios:

(Virtual Desktop Infrastructure) VDI
High-performance computing and deep learning — Provide sufficient GPUs to support machine learning and AI applications
The R4900 G6 Ultra supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.

Thông sô kỹ thuật Máy Chủ H3C UniServer R4900 G6 Ultra

CPU	two 4th Generation Intel®Xeon®Sapphire Rapids / 5th Generation Intel®Xeon® Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption HBM technology
Chipset	Intel®C741
Memory	32 DDR5 RDIMM Slots, 5600 MT/s Data Rate,4 TB on 2 CPU Configuration
Raid Controller	Dedicated PCIe HBA Controller or Raid Controller Standard PCIe HBA Controller or Raid Controller
FBWC	8 GB Cache, support Supercapacitor protection
Storage	29 Drives SAS/SATA HDD/SSD Drives,24 U.2 NVMe Drives; SATA/NVMe M.2 Kit, DSD Model (2xSD card kit) Front 12LFF bays, Rear 4LFF bays Front 25SFF bays, Rear 4SFF bays
Network	1 Onboard 1Gbps Management Network Port 2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter, 400GE IB card
Expansion Slots	10 PCIe5.0 Standard Slots and 2 Onboard OCP 3.0 Slots; CXL1.1
Ports	Standard:1 VGA Rear Port, 3 USB 3.0 Ports (1 Front, 2 Rear), 1 USB 2.0 Internal Port, 1 Management Port Optional:1 Rear Management Port, Mounting Bracket Kit with Type-C port, 1 VGA port, 1 USB port, 1 Management Port
GPU	8 Single-Slot or 4 Dual-Slot GPU Modules
Optical Drive	External Optical Disk Drive, Optional
Management	HDM Management System (with dedicated management port) H3C iFIST/UniSystem, LCD touchable model,64M Video Cache
Security	Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM Intel SGX2.0 and PFR3.0
Power supply	1+1 Redundancy power supply Titanium 1600W Platinum 800W/1300W/1600W/2000W/2400W/2700W DC power supply Hot swappable Redundant Fans
Standards	CE，UL , FCC，VCCI，CB, etc.
Operating temperature	5°C to 45°C (41°F to 113°F)
Dimensions (H×W×D)	2U Height Without a security bezel: 87.5×445.4x780mm (3.44×17.54×30.7 in) With a security bezel: 87.5×445.4x808mm (3.44×17.54×31.8 in)
