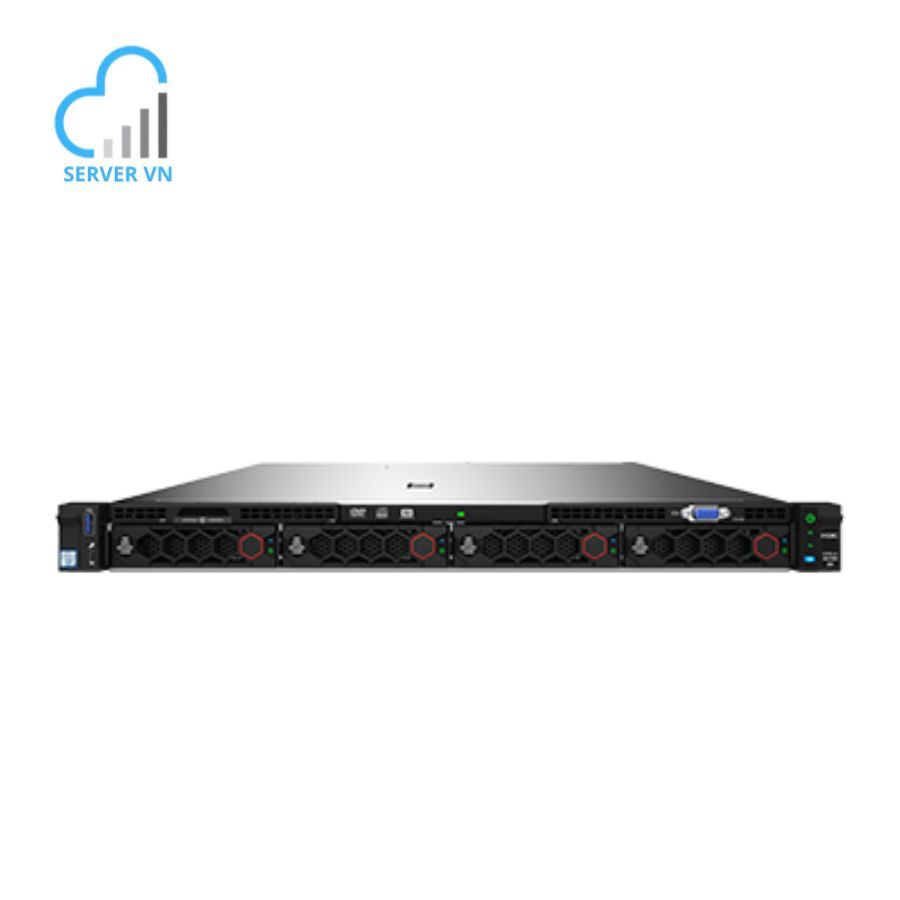

Thông số kỹ thuật máy chủ H3C UniServer R4700 G5
CPU | 2 x 3nd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
Chipset | Intel® C621A |
Memory | 32 x DDR4 DIMM slots , maximum 6.0 TB
Up to 3200 MT/s data transfer rate RDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series (Barlow Pass) |
Storage controller | Embedded RAID controller
Standard PCIe HBA cards and storage controllers,depending on model |
FBWC | 8 GB DDR4 cache, depending on model ,support supercapacitor protection |
Storage | Up to Front 4LFF bays, Rear 2SFF bays*
Up to Front 10SFF bays, Rear 2SFF bays* Front SAS/SATA HDD/SSD/NMVe Drives, maximum 8 x U.2 NVMe Drives SATA/PCIe M.2 SSDs,2 x SD card kit , depending on model |
Network | 1 x onboard 1 Gbps management network port
1 x OCP 3.0 slot for 4 x 1GE or 2 x 10GE or 2 x 25GE NIC PCIe Standard slots for 1/10/25/40/100GE/IB Ethernet adapter, |
PCIe slots | 4 x PCIe 4.0 standard slots |
Ports | VGA connectors (Front and Rear) and serial port (RJ-45)
5 x USB 3.0 ports (1 front, 2 rear, and 2 internal) 1 dedicated management Type-C port |
GPU | 4 x single-slot wide GPU modules |
Optical drive | External optical disk drive,optional |
Management | HDM OOB system (with dedicated management port) and H3C iFIST/FIST, support LCD touchable smart model |
Security | Intelligent Front Security Bezel *
Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM |
Power supply | 1+1 Redundancy power supply
Titanium 850W/1600W Platinum 550W/800W/850W/1300W/1600W DC power supply Hot swappable Redundant Fans |
Standards | CE,UL , FCC,VCCI,EAC, etc. |
Operating temperature | 5°C to 45°C (41°F to 113°F)
The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
Dimensions (H × W × D) | 1U Height
Without a security bezel: 42.9 x 434.6 x 780 mm (1.69 x 17.11 x 30.71 in) With a security bezel: 42.9 x 434.6 x 808 mm (1.69 x 17.11 x 31.81 in) |
